HP DesignJet Plotter Repair Services
If you are looking for a HP Designjet Plotter printer repair specialist in Southern California then its US. Our certified experienced HP Designjet plotter technicians are local in Los Angeles, Orange County, San Bernardino County and Riverside County. Call us at 888-786-4720 and lets us know your HP DesignJet model and the fault and/or the error code that is displaying and we will give you advice on this issue.
Southern California’s Best On-Site HP Design Jet Plotter Printer Repair & Services
Los Angeles | Orange County | Riverside County | San Bernardino County | Inland Empire
We repair all models of HP Designjet plotters, ranging from the older types to the brand new Design Jets.
Plotter or Large Format Printer problems we can fix:
- Carriage belt replacement
- Broken carriage belt
- Print-head error
- Ink supply error
- Paper not cutting
- Noise
- Error code
- No power faulty power supply
Same-day onsite HP designjet repair includes inspectin, cleaning, lubricating and print head calibration
- Clean plotter Carriage Rails.
- Lubricate the plotter Carriage Rails.
- Cleaning the Drive Roller.
- Encoder Strip Cleaning and inspection.
- Inspect and Clean Platen Assembly.
- Clean the complete Hewlett Packard LaserJet.
- Adjust the designjet print head after exchanging the belt.
- Quality test printout.

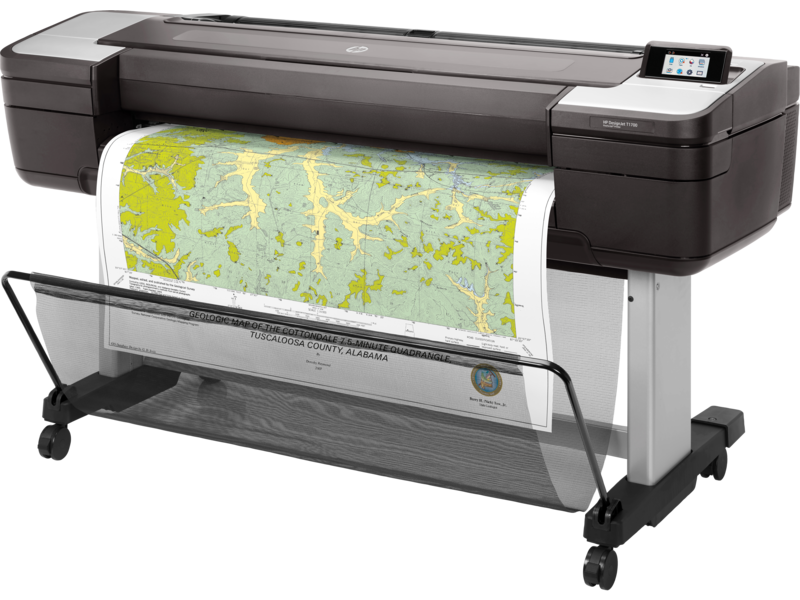

HP DesignJet Large-Format Printers
HP DesignJet Printers For CAD/GIS
Print maps, technical drawings, and renders with precise line quality and crisp text – in color and black and white.
- HP DesignJet T120 Printer Repair
- HP DesignJet T730 Printer Repair

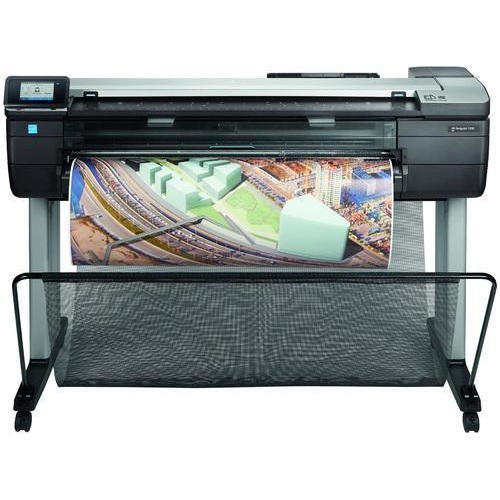

- HP DesignJet T830 Multifunction Printer Repair
- HP DesignJet T1530 Printer series Repair
- HP DesignJet T3500 Production Multifunction Printer series
- HP DesignJet HD Pro Multifunction Printer Repair
- HP DesignJet T520 Printer series Repair
- HP DesignJet T795 Printer Repair
- HP DesignJet T930 Printer series Repair
- HP DesignJet T2530 Multifunction Printer series Repair
- HP DesignJet SD Pro Multifunction Printer Repair

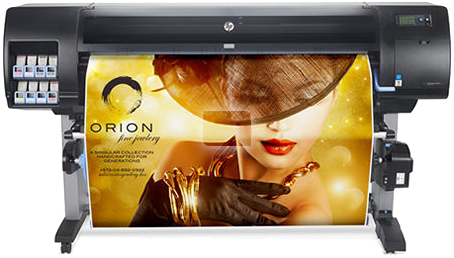

HP DesignJet High-Impact Graphics Printers
Create eye-catching, high-quality applications—including POP signage, posters and banners—effortlessly and affordably.
- HP DesignJet Z2100 Photo Printer series Repair
- HP DesignJet Z3200 Photo Printer series Repair
- HP DesignJet Z5400 PostScript Printer Repair
- HP DesignJet Z6200 Photo Production Printer Repair
- HP DesignJet Z6800 Photo Production Printer Repair
- HP DesignJet Z2600 PostScript® Printer Repair
- HP DesignJet Z5200 Photo Printer Repair
- HP DesignJet Z5600 PostScript® Printer Repair
- HP DesignJet Z6600 Production Printer Repair
- HP DesignJet HD Pro Multifunction Printer Repair

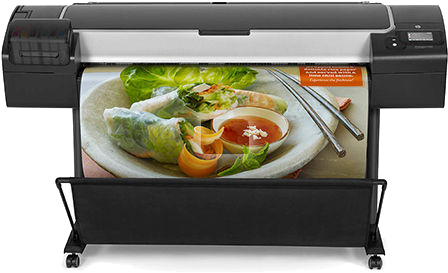

HP DesignJet Large-Format Production Printers
Manage your highest printing demands, from simple CAD drawings in B&W to complex color images, with speed and quality.
- HP DesignJet Z6200 Photo Production Printe
- HP DesignJet Z6800 Photo Production Printer
- HP DesignJet T7200 Production Printer
- HP DesignJet HD Pro Multifunction Printer
- HP DesignJet Z6600 Production Printer
- HP DesignJet T3500 Production Multifunction Printer series
- HP DesignJet SD Pro Multifunction Printer

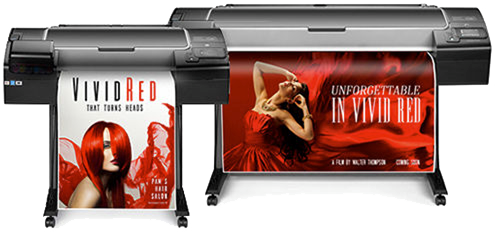

HP DesignJet Professional Photo-Quality Printers
Deliver impressive professional photo- and gallery-quality prints with the widest color gamut and superior gloss uniformity.
- HP DesignJet Z2100 Photo Printer series
- HP DesignJet Z5200 Photo Printer
- HP DesignJet Z6800 Photo Production Printer
- HP DesignJet Z3200 Photo Printer series
- HP DesignJet Z6200 Photo Production Printer

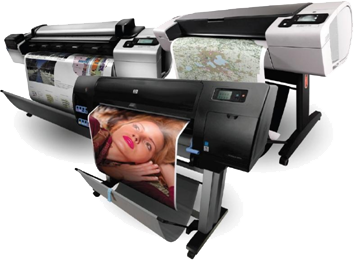

Designjet Large Format Printers
- HP Designjet 400 Printer series
- HP Designjet 510 Printer series
- HP Designjet 5500 Printer series
- HP Designjet T1100 MFP series
- HP Designjet T1120 HD
- HP Designjet T1120 Printer series
- HP Designjet T610 Printer series
- HP Designjet T770 Printer series
- HP Designjet Z6100 Printer series
- HP Designjet 500 Printer series
- HP Designjet 5000 Printer series
- HP Designjet 800 Printer series
- HP Designjet T1100 Printer series
- HP Designjet T1120 HD Multifunction Printer series
- HP Designjet T1200 Printer series
- HP Designjet T620 Printer series
- HP Designjet Z3100 Photo Printer series
HP 500 - 800 DesignJet Error Codes
- Error Code 86:01 – Worn Carriage belt (24″ Belt / 42″ Belt). Belt starts to breakup leaving belt dust inside printer and making clunking noise from motor with build up of rubber on gear.
- Error Code 11:11 – Trailing Cable badly connected or worn. (24″ Trailing Cbale / 42″ Trailing Cable)
- Error Code 81:01 – Paper feed motor failure.
- Error Code 03:10 – Power Supply failure.
- Blue handle breaking (Pinch-Arm Mechanism)
- Error Code 86:01 – Dirty Encoder strip hard to clean replace. (24″ Encoder / 42″ Encoder)
- Error Code 21:10 – Service Station failure.
- Error Code 02:10, 02:13, 12:11 – Carriage Assembly failure.
- Error Code 05:10 – (Only applicable to HP DesignJet 800 Series) Formatter failure.
- Some random errors can be caused by faulty printhead /ink cartridge. Take all consumables out, then switch printer back on.
HP Designjet Z6100 Error Codes
- Error 24:10, Ink broken bag error, if ink has leaked over Tube System pcb you need to replace Tube System as this can be result from 24:10. 42″ tube System – 60″ Tube System
- Blank display due to CPU fan failure and printer switching off after short time.
- Vacuum path holes blocked up due to ink in the holes causes reduction in holding media down.
- Spindle (42″ Spindle 60″ Spindle) end breaking on edge causing judder on spindle plus media going out of line on long print runs.
- Image quality issues: Run Image Quality Test to show which printhead is not 100%. Select the ink icon and then select Image Quality Maintenance > Printhead Diagnostics Image.
- Error 86:01 same as 87:01 Encoder strip (42″ Encoder 60″ Encoder) getting dirty! Encoder Strip becomes unreadable after user cleaning to many times and needs replacing. Other issues from this error code Carriage Belt worn (42″ Belt 60″ Belt) and Carriage Lubrication Felt dry and dirty.
- Ink vapors build up due to service station vent holes blocking up.
- Media Blue Handle breaking causing handle to be loose and not releasing pinch rollers.
- Roll housing right hand side tension spring breaking causing paper loading problems.
- Pinch roller assy: some of the rollers fall off then metal spring digs into feed roller.
HP Designjet 5000/5500 Error Codes
- Calibration failure at 30% or 70% line sensor failure. 5000 Line Sensor – 5500 Line Sensor
- Printhead failing after 40ml due to air in Tube System
- Boot-up failure due to hard drive being corrupt
- Blue End caps broken on spindle. Spindle 42″ – Spindle 60″
- Pinch roll assy: Some of the rollers fall off then metal spring digs into feed roller.
- Printer path 2! Carriage Belt worn. 42″ Belt – 60″ Belt
- Belt Tensioner Roller broken
- Jetdirect card fail due to spike in network
- Ink cartridge fail in one colour due to tube system issues
- Cutter roller worn or broken causing cutter not to cut media.
HP Designjet T/Z-Series Error Code
HP T610, T620, T770, T790, T1100, T1120, T1200, T1300, T2300, Z2100, Z3100 and Z3200 Designjet Printers 24″ 44″
- Error Code 47:01 – Star Wheel bail arm was not moving up or down due to star wheel Motor
- Error Code 03:10 – Noise coming from L/H side of printer with error – Need Power Supply.
- Error Code 86:01 – Scan-Axis Motor failure (likely due to obstacles in the scan axis or electrical fault). Carriage belt (24″ Belt 44″ Belt) worn or Scan Axis motor faulty.
- Not Cutting – Cutter needs cleaning.
- Error Code 11:01 – Trailing cable issues (24″ Trailing Cable 44″ Trailing Cable)
- Error Code 41:01 – Electrical fault or current limit in Media-Axis Motor due to paper jam or 47:01 Error code
- Error Code 86:01 – Encoder strip (24″ Encoder” 44″ Encoder) dirty need cleaning or replacing.
- Error Code 08:11 – No communication between the Front Panel and the Main PCA.
- Error Code 21:13 – Fail moving Service Station
We Carry Fully Refurbished DesignJet Plotter For Sale
